Save labor cost,avoid difficult recruitment situations.
Improve productivity and shorten the production cycle.
Speed: 7200 CPH
Full Automatic
Easy Opertaion.No experience request for operators.
Self-Developed Software.Simple programming.

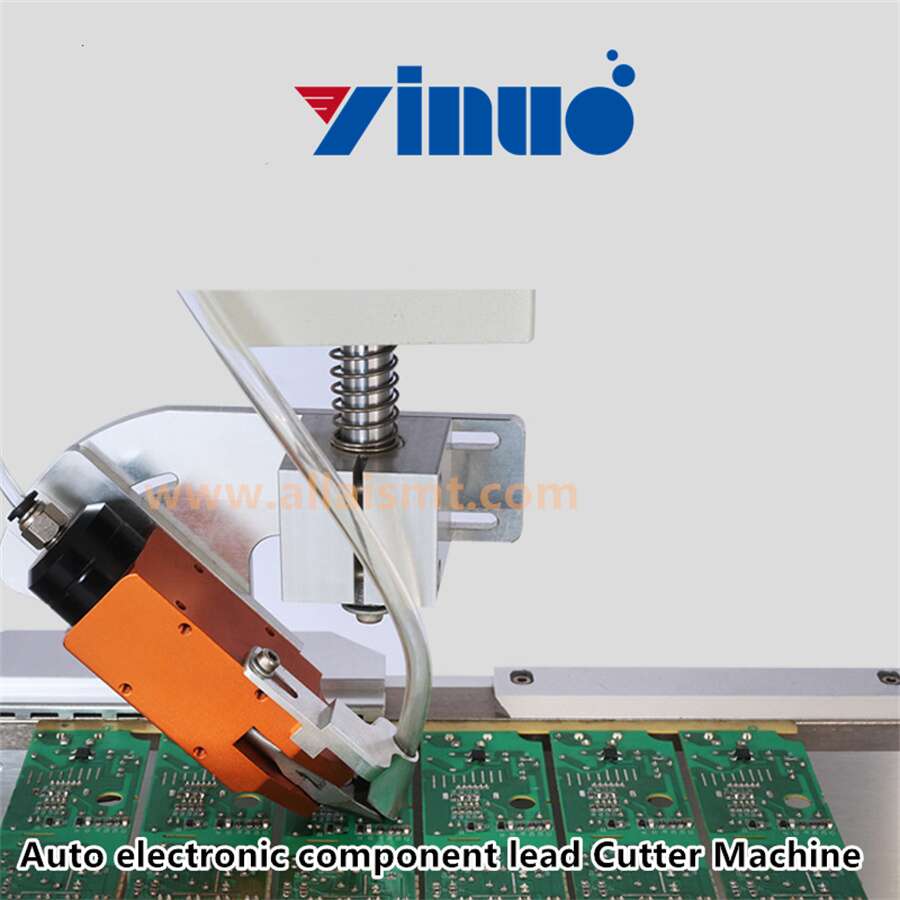

Excellent lead cutting accuracy by Special designed Four-axis lead cutting card.
Pliers head can be adjusted at any angle and direction
The machine automatically calculates the compensation point, and only needs to specify the supplementary distance between the plane and the space, the computer can calculate the position of the compensation point.
Orbital universal fixture, more convenient and fast when changing the wire, no need to open another clamp for different products
. Universal fixture, suitable for PCB board size range with process edge: 20*50mm—200*360mm (special size can be customized);
. Imported square pneumatic cutting pliers can be used to process pin cutting feet with a copper foot less than 3mm (the cutting pliers need to be replaced for different wire diameters), the lead cutter length is adjustable from 0.5 to 5mm, and the lead cutter accuracy is ±0.2mm.
. Component density: The safe distance between the THT electronic component PIN and the patch part is greater than 1mm, the distance between the patch component and the hole is greater than 3mm, and the pin offset is less than 2mm.
