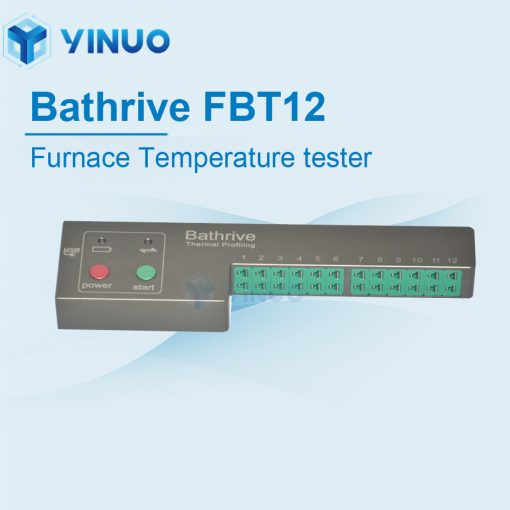

Product Name: Furnace Temperature Tester
Product Model: FBT12
Number of test
Product Brand: Bathrive
Purpose of product: measure the temperature of various heating or cooling devices; carry out temperature monitoring for a
long duration, temperature curve mapping and temperature data analysis, etc.
Scope of application: SMT electronic production and manufacturing, metallurgy, heat treatment, coating of stoving varnish,
braze welding, ir, tunnel kiln and all the industries that need temperature monitoring or measurement;
1.Small size, powerful function and the designed service life is over ten years;
2. High measurement precision +/-0.5’C, great speed(0.01second/time at the highest speed); capable of coping with
hallenges of any temperature measurement field with easy;
3. Integrated communication and charging via high-speed USB port which avoids extra charging all the time
4. Three types of trigger startup and four types of trigger stoppage can be optimized and matched freely. Besides, smart start
and stop can be realized, without manual intervention
5. 1200MA polymer rechargeable battery is employed for power supply.
6. More than 100 groups of curve overlapping analys
7. 255 groups of temperature curve data (optional) can be saved at the maximum
8. Prompting of complete firmware information allows users to check the instrument’ s use record, state and hardware
configuration at any time
9.Intelligent PWI index analysis:
10. Automatic curve optimization
11. The time of instrument can be set or calibrated and can be synchronized with the computer
12. Powerful curve editing function
Product specification:
|
1 |
Instrument model |
FBT12 |
|
2 |
Overall Dimension |
20*47*179(mm)(H*W*L) |
|
3 |
certainty of measurement |
+/-0.5℃ |
|
4 |
temperature resolution |
0.1℃ |
|
5 |
frequency of sampling |
0.01 times/ per second ~ once per hour |
|
6 |
dedicated space |
16M(optional) |
|
7 |
channel number |
12 |
|
8 |
Storage group number |
255(optional) |
|
9 |
battery capacity |
1200MA |
|
10 |
starting mode |
Key trigger, temperature trigger, delay trigger |
|
11 |
stop mode |
Key trigger, temperature trigger, delay trigger, communication trigger |
|
12 |
Instrument operating temperature |
-40~+105℃ |
|
13 |
Temperature Range |
-200~+1370℃ |
|
14 |
Thermocouple type |
Type K |
|
15 |
Processor bits |
32 |
Specification of heat insulation sleeve:
|
1 |
Model |
Specification (mm) |
150℃ |
200℃ |
250℃ |
300℃ |
|
2 |
TB7038 |
38*70*214(H*W*L) |
28 minutes |
17 minutes |
13 minutes |
11 minutes |
